Insole Project (Subject for master’s thesis)

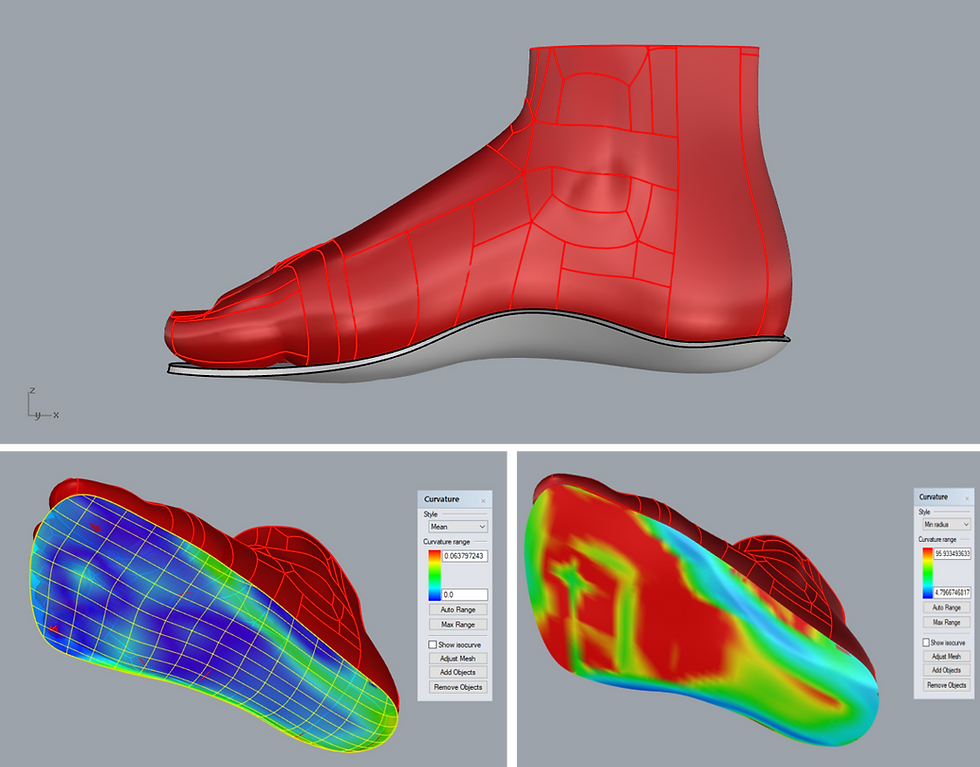

Develop customized Insoles for people with Cerebral Palsy who have the Equinus gait(tiptoe walking) by using 3D scanner, 3D modeling software and 3D printer.

Walking is the most essential movement for people. Bad walking pattern cause many severe problems in our body. Body balance, heart and respiratory problems are a prime example. People with Cerebral Palsy who have the gait problems are especially vulnerable with this situation.

Of course there are some good insoles from many companies, but they are too expensive and hard to get it and I think 3D printing Is the most efficient way to reducing prices, improving quality, and saving time for whole process.


보행은 인간에게 가장 근본적인 움직임이라고 할 수 있다. 잘못된 보행 양상은 우리 몸에 심각한 문제들을 가져올 수 있는데 특히 신체 균형이나 심장 및 호흡계에 중대한 문제를 유발할 수 있다.

이미 시중에 다양한 기능성 인솔들이 판매되고는 있지만 고가에 형성된 가격과 개인맞춤 옵션의 제한성 등으로 인해 첨족 보행 뇌성마비 장애인과 같은 특정한 대상자들에게 적합한 개인맞춤형 인솔은 찾아보기 힘든 실정이었다.

3D 프린팅을 활용하는 경우 제작 비용, 기간 등에서 효율성을 확보할 수 있으며 개인 의견에 따라 디자인 선호 사항을 적극 반영하고 기능적 향상도 도모할 수 있다는 점에서 본 프로젝트를 시행하게 되었다.

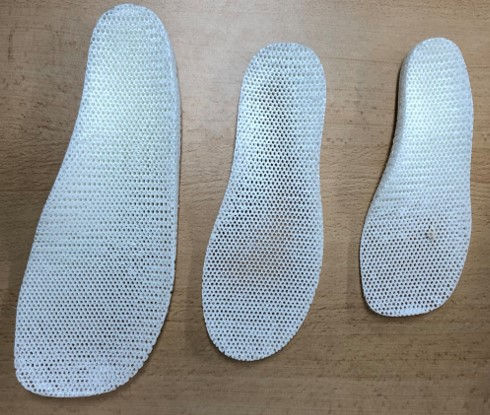

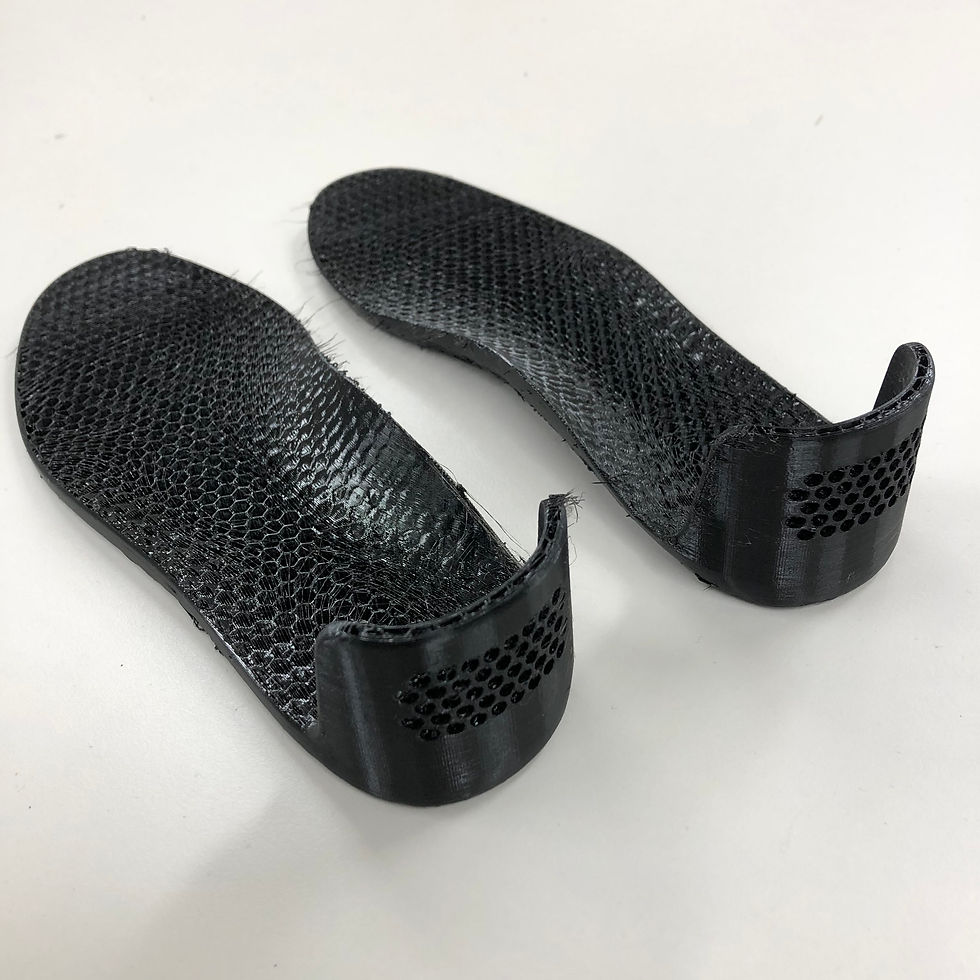

Various types of Insole

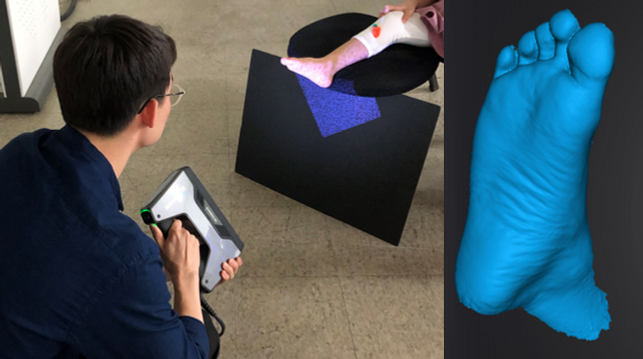

3D Scanning

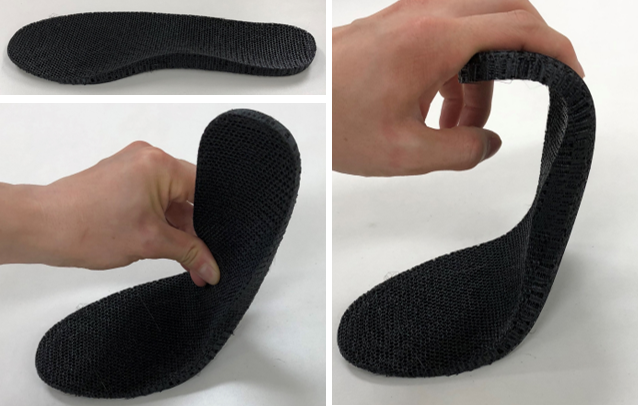

Have been tested a number of options including flexibility.

Consider a number of factors to determine the most appropriate option.
